Ultrasonic pyramid tea bags · SPM-600MH

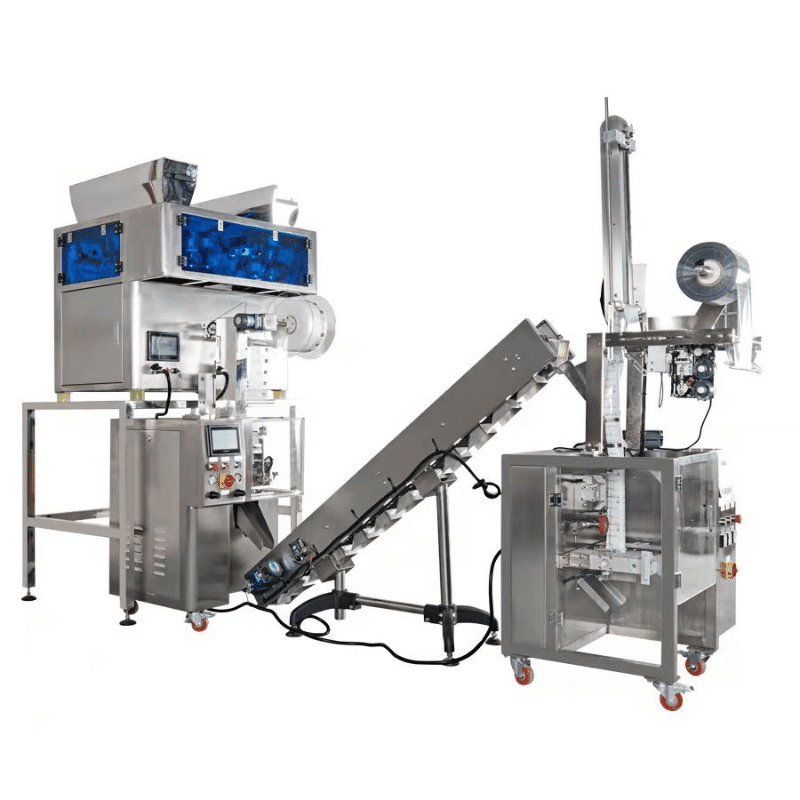

Pyramid Tea Bag Packaging Machine
Weigh, fill and ultrasonic-seal nylon or PLA mesh pyramid tea bags with tag and thread — up to 65 bags/min, or 40 bags/min with the outer envelope.
CE-marked · Free sample test, video in 3 working days · 14–40 day lead time
Confirm first: Drip coffee bags, rollstock sachets and premade pouches run on other Spack machines.
- Best fit
- Whole-leaf, fine-cut, herbal and flower teas in pyramid or flat tea bags, 1–10 g per bag, with tag and thread and an optional outer envelope.
- Confirm before selection
- Representative product, pouch samples or drawing, target dose and required output.
Start with three project facts
-
01
What are you packing?
Flow, dust, viscosity, particle size and target dose.
-
02
Which real pouch will run?
Drawing, dimensions, material, zipper and opening behavior.
-
03
What result is required?
Target speed, coding, gas, inspection and downstream needs.
Your Project Snapshot
Review the current starting point
Selections you make below, ready to carry into your request.
- Application
- Whole-leaf profile
- Pack format
- Pyramid Tea Bag
- Model range
- SPM-600MH
- Line
- Configured to product
Product Fit
What product do you need to pack?
Pick the tea closest to yours. Send the tea you actually sell for a free sample test and we send a video of it running within 3 working days.
Whole-leaf profile Packaging
Typical dosing
6- or 8-head multihead weigher, 1–10 g per bag
Key checks
- Leaf length and shape
- Fragility
- Bulk density
- Bridging tendency
Send your tea and target weight per bag; the sample test video shows how the leaves dose and fill the pyramid.
Sample validation. Final compatibility and machine configuration are confirmed using representative product and pouch samples.
Bag Format Capability
Inner Bag & Outer Envelope Options
SPM-600MH switches between pyramid and flat tea bags with one key, and adds a pillow or three-side-seal outer envelope when you need one.
Inner Bag Options
-
Pyramid Tea Bag
Nylon, PLA or polyester mesh pyramid bags, 60–80 mm wide and 40–80 mm long, with tag and thread.
-
Flat Tea Bag
Flat mesh or nonwoven tea bags on the same machine — switch with one key.
Outer Envelope Options
-
Three-Side-Seal Outer Envelope
Individual three-side-seal envelope, 70–120 mm wide and 80–140 mm long.
-
Pillow Outer Envelope
Individual back-seal (pillow) envelope, 70–120 mm wide and 80–140 mm long.
Project confirmation. Send a finished tea bag or drawing, your mesh and your envelope film; we run them with your tea in the free sample test.
Proof You Can Rely On
See the machine work, then look closer
Watch the pyramid tea bag machine run, including pyramid bags packed in outer envelopes. Send your own tea and mesh and we film them on the machine within 3 working days.
Main evidence · Full cycle
How the pyramid tea bag machine works
The automatic pyramid tea bag machine through a full working cycle.
Equipment in action
- Complete operating cycle. One running configuration — not a universal speed or performance claim.
- Support routes. Additional machine configurations shown with the host platform.
Machine in operation
Configuration and process videos. Each clip shows one running setup — not a universal speed or performance claim.
Support evidence · Inner bags
Pyramid tea bag packing machine in operation
A second run of the automatic pyramid tea bag packing machine.
Support evidence · Outer envelope
Pyramid tea bags with outer envelope
Pyramid tea bags packed into individual outer envelopes.
Configure Complete Line
See the Complete Route from Product Feed to Outer Envelope
Choose the line you need: inner bags only, inner bags with tag and thread, or inner bags packed into outer envelopes.
-
01 · Weigh & dose
Tea weighing & dosing
The 6- or 8-head multihead weigher doses 1–10 g per bag, ±0.2 g.
-
02 · Inner bag
Form, fill and seal
Pyramid or flat bags are formed, filled, sealed ultrasonically and fitted with tag and thread.
-
03 · Outer envelope
Add the outer envelope
Each bag is packed in a pillow or three-side-seal envelope; gas flush, tear notch and date printing are options.
-
04 · Discharge
Handle the finished pack
Envelopes are counted and discharged to a conveyor, metal detector or checkweigher.
Route confirmation. Stage scope, included equipment and change parts are confirmed against your product sample, bag format and finished-pack requirement.
Discuss Your Packaging RouteModels & Parameters
One machine platform. Confirm the complete system.
One model, SPM-600MH, makes pyramid and flat tea bags 60–80 mm wide and 40–80 mm long, with an optional pillow or three-side-seal outer envelope.
Model
SPM-600MH
- Inner bag width
- 60–80 mm (2.4–3.1 in)
- Inner bag length
- 40–80 mm (1.6–3.1 in)
- Speed
- Inner only up to 65 bags/min · with outer 40 bags/min
- Machine size
- 3508 × 1400 × 2233 mm (138.1 × 55.1 × 87.9 in)
Metric primary · US customary in parentheses where published.
| Parameter | Specification | Note |
|---|---|---|
| Inner bag | Pyramid / flat tea bag, one-key switch | |
| Inner bag size | L 40–80 × W 60–80 mm (1.6–3.1 × 2.4–3.1 in) | |
| Inner bag sealing | Ultrasonic | |
| Tag & thread | Standard | |
| Inner bag material | Nylon mesh, PLA mesh, polyester (PET) mesh, nonwoven and other degradable webs | Send your mesh or a roll sample with your tea for the sample test. |
| Film width | 120 / 140 / 160 mm | |
| Outer envelope | Pillow or three-side-seal, L 80–140 × W 70–120 mm (3.1–5.5 × 2.8–4.7 in) | Optional outer bag packager. |
| Machine speed | Inner bag only: up to 65 bags/min; inner + outer linked: 40 bags/min | Your free sample test shows the rate for your tea. |
| Weighing system | 6 / 8-head multihead weigher | |
| Filling range | 1–10 g per bag | Depends on the tea and bag size. |
| Fill accuracy | ±0.2 g per bag | |
| Control | Siemens PLC, multi-language HMI, photoelectric eye | Storage for 100 product recipes; automatic count and stop. |
| Frame | 304 stainless steel, guard door | |
| Compressed air | ≥0.6 MPa · 0.4 m³/min | |
| Power | Single-phase 220 V, 50/60 Hz | |
| Machine size | 3508 × 1400 × 2233 mm (138.1 × 55.1 × 87.9 in) | Complete line with the outer envelope packer (L × W × H). |
| Options | Outer bag packager, gas flush, tear notch, date printer, metal detector, checkweigher, infeed and discharge conveyors | |
| CE conformity | 2006/42/EC · EN ISO 12100, EN 60204-1, EN 415-1 | UDEM Cert. M.2024.206.C100050, valid to 2029-04-25. |
Speed depends on the tea, fill weight and bag size. Your free sample test shows the rate for your tea.
Technical Reference
Open only the level of detail you need

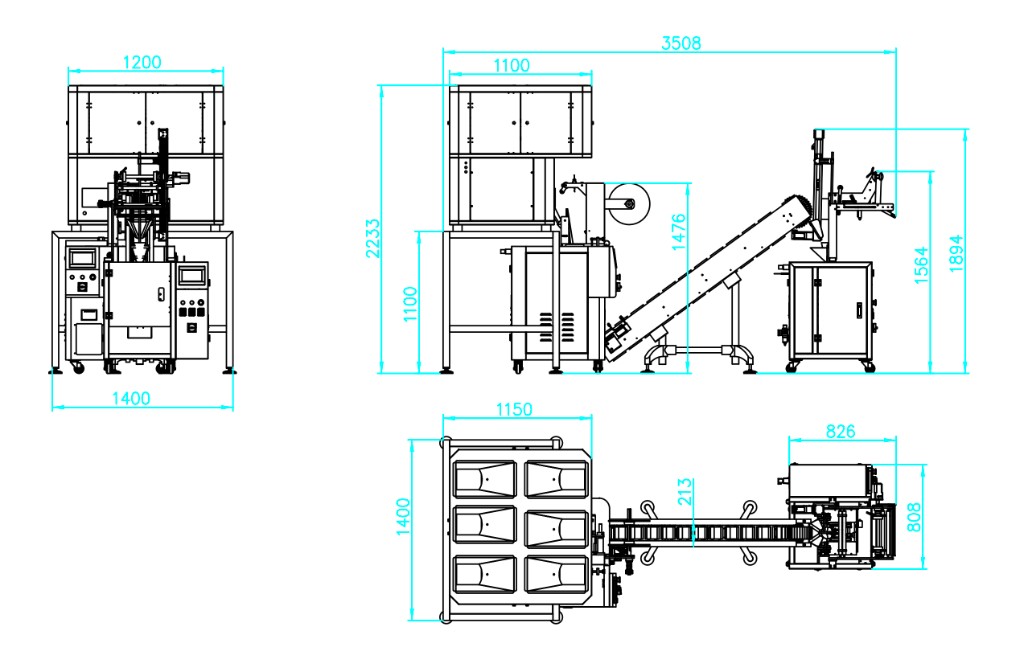

Plan floor space from the manufacturer dimension drawing: the complete line with the outer envelope packer is 3508 × 1400 × 2233 mm (L × W × H).
Layout boundary. This drawing is a manufacturer reference for space planning. It is not a final installation drawing; utilities, clearances and included modules are confirmed for each project.
Service & Support
What happens after the machine ships
From free sample test to after-sales support.
-
Free sample testing
Send your tea and mesh; we test them free of charge and send a test video within 3 working days of receiving the samples. You pay the sample freight, and we refund it when you place the order.
-
Lead time, payment & inspection
Lead time is 14–40 days from the day we receive the deposit. A 30% deposit starts production; when the machine is built we send full test videos and photos to confirm details, and FAT or third-party inspection is welcome. The 70% balance is paid before shipment.
-
Installation & commissioning
On-site commissioning is arranged when your project requires it. The service fee, round-trip airfare and accommodation are the buyer's responsibility; exact scope is confirmed in the quotation.
-
Operator training
Operator training is part of project handover. Format and duration are confirmed for your configuration and region in the quotation.
-
Warranty & spare parts
Warranty covers 12 months from the date of machine receipt. During that period, defects or malfunctions are covered by technical support and complimentary spare parts for replacement; freight on those parts is borne by the buyer.
-
Remote support
From dispatch onward, support is available by phone, Skype or FaceTime. Most issues can be resolved remotely. When an onsite visit is required, a technician is arranged; the service fee, round-trip airfare and accommodation are the buyer's responsibility.
Frequently Asked Questions
Pyramid Tea Bag Packaging Machine FAQs
These questions cover the decisions that lock a configuration: product fit, pack format, speed, quotation scope and after-shipment support.
Can a pyramid tea bag packaging machine run my tea?
Yes, for whole-leaf, fine-cut, herbal, flower and granulated teas at 1–10 g per bag. A 6- or 8-head multihead weigher doses each bag to ±0.2 g. Send your tea for a free sample test and we send a video within 3 working days. See Product Fit.
How fast is the pyramid tea bag packaging machine?
Up to 65 bags/min making inner bags only, and 40 bags/min when the outer envelope packer is linked; see Models. Your rate depends on the tea, fill weight and bag size, so the free sample test shows the speed for your own tea before you order.
Does the pyramid tea bag machine use ultrasonic sealing?
Yes. SPM-600MH seals the inner bag ultrasonically. It runs nylon, PLA and polyester (PET) mesh and nonwoven webs. Send a roll or sample of your mesh with your tea for the sample test.
Can one machine make both pyramid and flat tea bags?
Yes. SPM-600MH switches between pyramid and flat tea bags with one key. Inner bags are 60–80 mm wide and 40–80 mm long, on 120, 140 or 160 mm film.
Which tea bag materials can it run?
Nylon mesh, PLA mesh, polyester (PET) mesh and nonwoven, including degradable webs. Send your mesh specification or a roll sample with your tea for the sample test.
Are tag, thread and the outer envelope included?
Tag and thread are standard. The outer bag packager is an option: it packs each tea bag in a pillow or three-side-seal envelope 70–120 mm wide and 80–140 mm long. Gas flush, tear notch, date printer, metal detector and checkweigher are also available. See the line configuration.
Is the pyramid tea bag machine CE marked?
Yes. SPM-600MH is CE-marked under Machinery Directive 2006/42/EC (EN ISO 12100, EN 60204-1, EN 415-1). The technical file was reviewed by UDEM, certificate M.2024.206.C100050, valid to 2029-04-25. Ask us for the certificate and declaration of conformity.
What are the lead time and payment terms?
Lead time is 14–40 days from the day we receive your deposit. Payment is 30% deposit to start production and 70% balance before shipment. Before you pay the balance we send full test videos and photos, and you can arrange a FAT or third-party inspection.
Can you test my tea before I order?
Yes, sample testing is free. Send your tea and mesh; we test them free of charge and send a test video within 3 working days of receiving the samples. You pay the sample freight, and we refund it when you place the order.
What should I send for a quotation?
Start with your tea, the fill weight per bag and a photo of the finished bag. Add the mesh, tag, outer envelope and target output if you have them — partial details are fine. Use the inquiry form on this page.
How is the pyramid tea bag machine supported after it ships — and what is the warranty?
Warranty covers 12 months from the date of machine receipt. During that period, defects or malfunctions are covered by technical support and complimentary spare parts for replacement; freight on those parts is borne by the buyer. From dispatch onward, support is available by phone, Skype or FaceTime. Most issues can be resolved remotely. When an onsite visit is required, a technician is arranged; the service fee, round-trip airfare and accommodation are the buyer's responsibility. See Service & Support.
Customers & Installations
Where Spack Machine equipment runs
Customer-site and client-visit footage from Spack Machine projects, published with the customer's permission. Each clip is one installation with its own configuration — read it as context for how we work, not as a speed, output or accuracy claim for your product.
Customer site · United Kingdom
Testimonial from a UK customer
Filmed at the customer's own site after installation.
Client visit · Oregon, USA
Catching up with long-time clients
From our visit to long-time Spack Machine clients in Oregon, USA.
Customer site · Indonesia
Testimonial from an Indonesian customer
Filmed at the customer's own site after installation.
